An Experience Sharing of Central Conveying System

One automobile plastic accessories manufacturer in Chongqing is adept at producing automotive interior and exterior accessories, expanded polypropylene and plastic components of engine, etc.

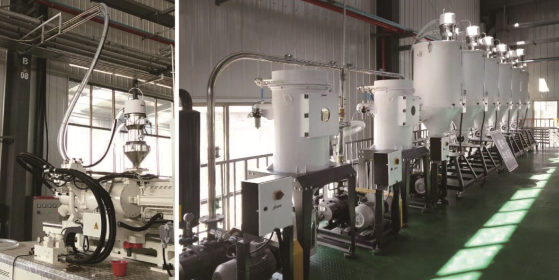

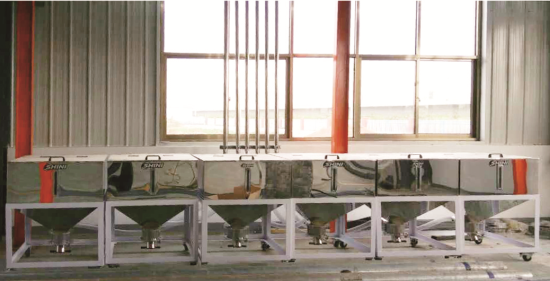

At this time, the customer planned the conveying systems of 6 injection molding machines, equipping them with 6 dryers, 3 Roots Blower (one backup), 2 central filter, all tidily put on the second floor of the conveying platform in one side of the workshop. Meanwhile, there is a material distribution station designed for accommodating 6 sets of two-heads branch pipes which are overlapped pairwise. The overall structure of the distribution station is small and exquisite, occupying little space and convenient for customers to operate and change raw materials. The first floor of the platform is used for placing 6 storage tanks, all of which are connected with the hopper via stainless steel pipes installed in middle position.

The 6 pipes which stretch from the distribution station to the workshop are parallelly paved, with their supports welded on the wall。The engineering team tactically arranged the configuration of pipes routes and the waterways, circuit and gas pipelines in the workshop in different layers, installing receivers in good order. Every injection molding machine is connected with its hopper via a metal pipe plus a wire hose, with the former one connected with its pipe outlet. The service life of the hopper can be prolonged for the collision between hopper and raw material is avoided after the flowing speed of raw material is reduced in the wire hose. This design also avoids hopper inclining which is often caused by the shifting die cavity of injection molding machine during its operation due to the poor flexibility of wire hose.

The customer’s workshop is clean and in good order. In an overall view, the routine that passes through the storage tank on the conveying platform, the dryer, the material distribution station and the injection molding machine is very clean and tidy. What’s more, with engineer’s ingenuity, the air outlet of injection molding machine is connected with the air pipe via a short flexible pipe, achieving a smooth connection and making the whole system look integrated.

Shini will keep making progress in producing auxiliary machine and endeavor to build its brand with its professional working teams, excellent technology and meticulous working spirit.
