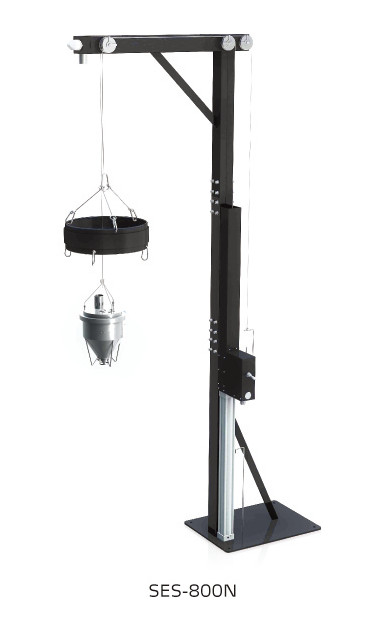

Auto Loader of Big Bag

Features

1.Anti-sticky pillars at the suction inlet of big bag can effectively prevent suction suspension due to the bag involved into the suction inlet.

2.Air refilling device on hopper cover can adjust the refilling inlet according to suction for convenience.

3.Simple structure, strong loading capacity.

4.Full-range loading without manual interference.

Application

The auto loader of big bag is applicable to loading, conveying, discharge of particles in plant; simple structure, strong loading capacity for wide applications in particles related industries.

Options

1.When customer has high requirement on mobility of the big bag,  the base is optional with flexible castor.

2.As previous agglomeration characteristics, the piston reciprocating pneumatic vibrator is applied, and the vibrator connected with air pipe can vibrate after connection.

3.According to different heights of the big bag, select the cylinder with different strokes.

4.According to different big bags, fastener clamp is optional to tighten the big bag after it is directly hung on the ring.

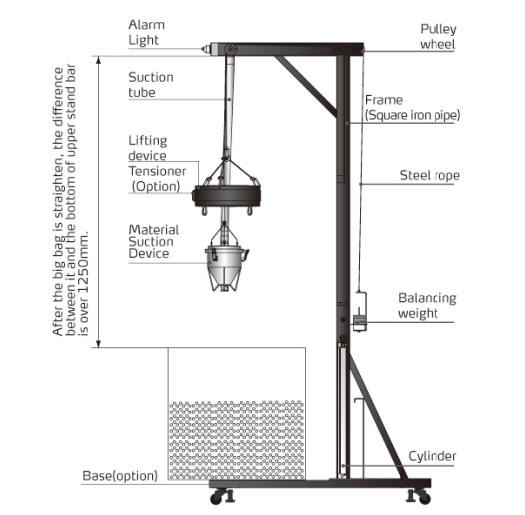

Structure

Suction device

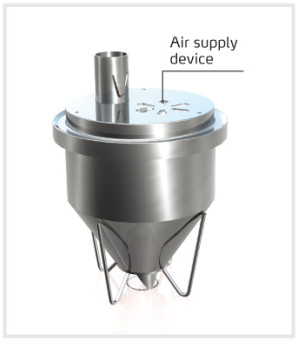

Air supply device: before material suction, open the air supply device and adjust the size of the inlet according to the suction situation for smooth operation.

A hopper hung by wire rope serves as suction device. It can rise and fall vertically since its weight is different from the balancing weight. In addition, the air supply device can adjust material suction situation.
