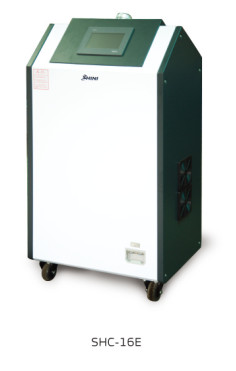

Multi-cavity Hot Runner Controller

Features


1.Manual function


2.PID auto temperature control


3.Selectable two thermocouple types (J/K)


4.Selectable two temperature scales (°C/°F)


5.Selectable four alarm modes


6.Current, output, and display function


7.Thermocouple break


8.RS485 communication function: ASCII and RTU mode


9.Internal alarm buzzer


10.Recordable temperature features


11.Concurrent output-caused circuit breaker tripping can be avoided by user configurable automatic heating in stages


12.Temperature range:K TYPE: 0~700°C (0~1200°F) /J TYPE: 0~500°C (0~900°F)


13.Self diagnosis log: (current, voltage, heater impedance, power, thermocouple, heater, fuse, TRIAC status)


14.Extension-type portable control wire 0~5m


15.Rack type cabinet design


16.Micro SD port


17.Color panel display


18.NAND Flash 8M+128M


19.Automatic ID recognition


20.Protection for input power wiring errors


21.Power cable error protections


22.Heat dissipation function for heatsink over-heat


23.Detection for heater disconnection and short circuits


24.Easy swapping for individual module failures


Application

The SHC-E multi-cavity hot runner controller features a 0-16 point temperature combination control and multi-machine networking. Maintenance operations can be simplified with its modularized device design and requirement-based configuration. The purchasing costs are greatly reduced by its unique temperature control, with two points within one level. Portable controller adopted image display and manual control that is easy for fast adoption in multi-points control. The RS485 communication function enables you to set up multiple controls at once to simplify the required operations. The built-in and practical current sensor and indicator functions benefit various applications, especially for automotive, bottle billet injection, and medical supplies, by realizing the concept of one-stop control.
