Special Reports

2014 Quarter 1 Issue 18

Shini Granulator Meet Requirements of All Clients

Share to:
There are 4 main types of Shini granulators: low-speed granulator, sound-proof central granulator, shredder, sheet granulator. They can fully meet clients’ different needs.

Low-speed Granulator

There are two kinds of low-speed granulators. One is screenless granulator and the other is low-speed granulator.

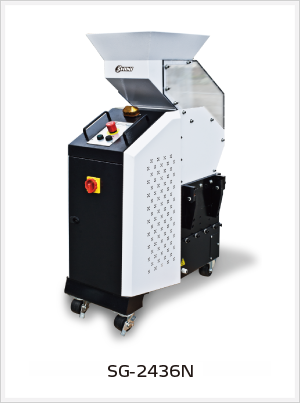

Screenless granulator SG-14/24N/24T is suitable for granulating and recycling sprue material and rejects. It adopts integrated design of trapezoidal tooth cutter and staggered blades. In addition, it adopts German gear motor and is with screenless design. It rotates in a slow speed. It can do coarse crushing and fine crushing simultaneously, which ensure even granulating and less dust. Besides, it can automatically reverse when it’s blocked.

Low-speed granulator SG-16N/20N is suitable for granulating and recycling sprue material and a few rejects. There are two kinds of blades. One is staggered blade and the other is paddle blade. The staggered blades are adjust-free rotary blades which can be reused after resharpening and has no need of adjusting gap. The paddle blades adopt integration design of gradually cutting. With presetting knife jig, it’s easy to adjust the blades. It’s also suitable for granulating fiber contained material after special hardening.

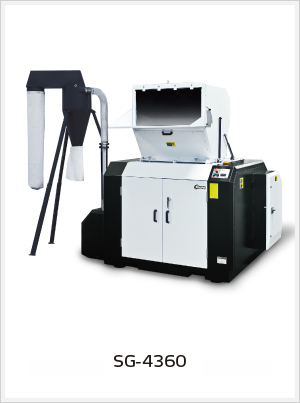

Sound-proof Central Granulator

This machine is suitable for central granulating a large number of rejects, thick solid material and hollow frame material. It’s available to select side feeding port for granulating pipe material and section material. It adopts paddle blades (excluding SG-23) which can granulate fiber contained material after special hardening treatment. It’s equipped with cooling device (SG-36 & above). For SG-43/50/70, the cutting chamber is available in three blades design or five blades design. The one of three blades is suitable for granulating hollow frame material, like water bucket and plastic frame. The one of five blades is suitable for granulating thick solid material, like waste from injection molding toppings.

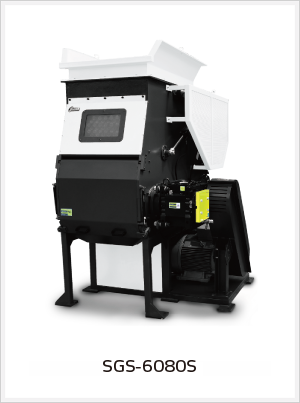

Shredder

Traditional granulators are not suitable for granulating large plastic parts, like drainage pipe of thick wall plastic and large auto parts. In such situation, it’s necessary to shred the materials first before granulating. Shredder SGS-S of Shini employs single-shaft design and it’s equipped with square blades which can be reused by rotating. Working with conveyer belt and granulator, it can make a production line of “shredding-granulating-recycling”to improve production efficiency.


Sheet Granulator

For granulating packing film, plastic curtain, sheet and their excess materials, Shini offers sheet granulator SGF which is suitable for granulating sheet of 0.5~4mm thickness. The width of feeding port is adjustable. It’s equipped with adjustable speed sheet material coiling device, cooling device for cutting chamber.
