Proportional Mixer

Share to:

Features

1.SUS304 stainless steel screw of durable;

2.Simultaneous metering makes mixing unnecessary that mixes while metering.

3.Materials separated by specific gravity difference can be mixed sufficiently.

4.Particles of different sizes and shapes can be completely mixed.

5.The static will be generated during material mixing, and the product will have color splash.

6.The machine is free of mixing that features better effect.

7.Troubles resulted by dust from mixing have been eliminated completely.

8.Modular assembly structure with convenient assembly and disassembly is easy for cleaning up and exchange.

9.Record current operation mode that unaffected by power failure can return work at once after the power is reconnected.

10.Set manual material cleaning value for convenient material shift.

11.Recipe of recordable is convenient for saving and calling.

12.DC brushless motor is free of maintenance.

13.Material blockage and overload can be detectable with auto shutdown protection and alarm.

14.Equipped with test box and material screw that are convenient to test the material discharge ability for the customer.




Application

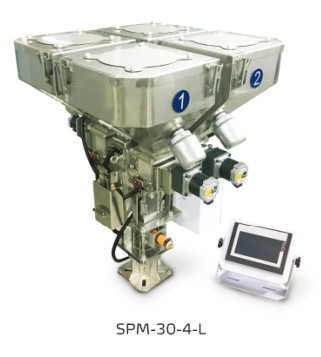

SPM series proportional mixer is applicable to auto proportional mixing of the granules, re-granules, master-batches and additives. The motor reduction ratio of this product is 50:1 in screw diameter of 30mm, which can be transformed to the proportional mixers of four ingredients, three ingredients and double ingredients models as customer demands.
