المنتجات

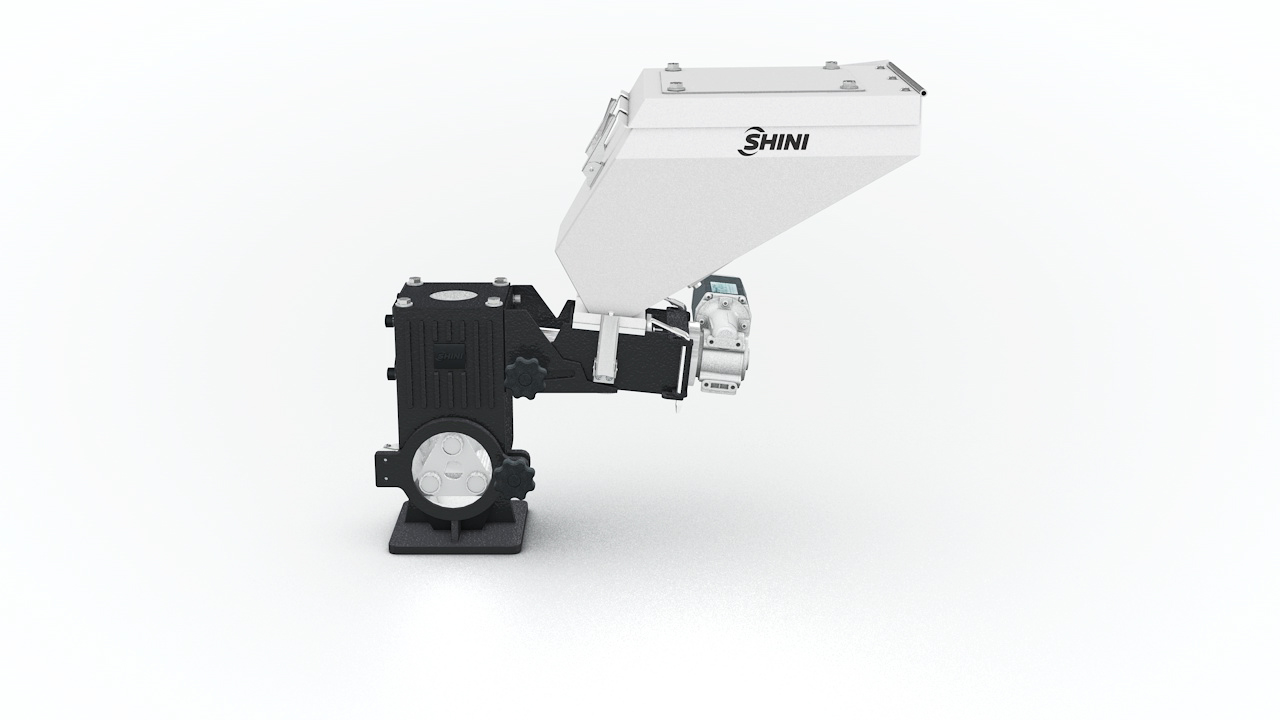

SCMالغمر الحجمي-

  • الكاتالوج الاليكتروني
  • مقدمة
    SCM سلسلة الغمر الحجمي هي مناسبة لخلط تلقائي نسبي للمواد البكر، وإعادة طحن، دفعة رئيسية أو إضافية. محرك التروس بنسبةتروس من 38:1 أو من 75:1 أقترن بجرعات اللولب من 12، 14 أو 16مم قطر لإعطاء مجموعة من ستة طرازات بالإخراج. تتراوح بين 0.1 ~ 32 كغ/ساعة غمر لون مزدوج ويمكن تجميع من لون واحد لأثنين غمرا إذاطلب. خمسة مكونات خلط تلقائي يمكن أن تتحقق إذا كان العميلأختار غمر أربعة ألوان.
  • SCMالغمر الحجمي-
  • ملامح
    • Dosing screws are chrome plated for durability.

    • Unit is comprised of standard modules for ease of cleaning, disassembly and interchangeability.

    • Three-tube hopper magnet is equipped at the base of single color doser to absorb metal impurities so to prevent screw of moulding machine from damage.

    • Blender is a standard equipment for double color doser to make the material evenly mixed, while also a optional equipment for single color doser to do so.

    • Main material hopper is a standard equipment for double color doser. It is optional for single color doser.

    • External signals can be directly interfaced with control box.

    • The current operation mode can be recorded, unaffected by power failure so operation would be returned to normal when power is on.

    • Forced material cleaning is convenient to replace masterbatch.

    • Applicable on extrusion machines, just need to make a few wire replacements.

    • Rotating speed can be automatically adjusted according to extruder processing speed, which maintains the fixed proportion of masterbatch.

    • 50 units of parameter recipes are available for permanently recording the period of material discharging and finished products weight (for extruder, it is max. throughput per minute).

    • Use brushless DC motor and free from maintenance.

    • Both master blockage and overload can be detected, then machine will halt and sound alarm.

    • Based on customers demand, some mold cycles can be set to add additives periodically so that micro-metering can be achieved.
