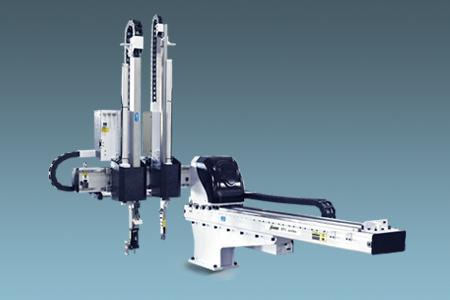

Standard Single Axis Servo Driven Robot ST1-S1

  • Standard Single Axis Servo Driven Robot ST1-S1
  • الكاتالوج الاليكتروني
  • مقدمة
    The ST1-S1 series robot is designed for rapid and precise removal of sprue and products from injection molding machine. Standard and telescopic arm(s) are selectable according to applications of 2-plate molds, 3-plate molds or hot runner systems. Multiple stop points in Z axis, convenient for package. Suitable for injection molding machine with clamping force under 280 tons.
  • Standard Single Axis Servo Driven Robot ST1-S1
  • ملامح
    • Precision
      Traverse movement is driven by heavy duty servo motor with cooperation of precise linear guide rails and high power V belts; Fast, silent, and precise. Wrist mechanism employs pneumatic driven rack and pinion system, which accomplishes smooth, stable and precise flipping motion.

    • Safety
      High efficient shock absorbers allow fast and precise pneumatic driven motion. Drop proof locking mechanism prevents accidences due to malfunction of pneumatic source. Position limit sensors and blocks effectively prevent mechanical and electrical malfunctions. Control board with short circuit function.

    • Intelligence
      3.2 inch true color LCD and graphical use interface automatically monitor and real time monitoring. Display error messages, easy to operate and ensure the use of safety. Extra extend I/O ports are available for other application. Teach program and setup cycle movements, provide plug and use without modify control system. Flexible and dialogic programming scheme offer 10 standard programs and 18 customized programs.
