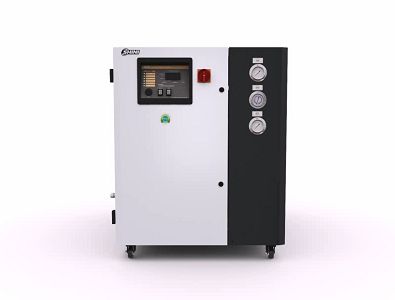

CFC-free Refrigerant Water-cooled Water Chiller SIC-W-R2

CFC-free Refrigerant Water-cooled Water Chiller SIC-W-R2

BACK

Контакты

•
• E-Catalog
  DOWNLOAD
• Introduction
  It is applied to plastics industry to precisely control moulds temperature so that molding cycle can be reduced and quality would be improved. Also SIC-W-R2 series can be applicable for electronic and machinery manufacturing to ensure normal operation temperature for devices.
• Свойства
  Standard configuration


  • Cooling range 7~25℃.


  • Insulated water tank made of stainless steel.


  • Equipped with anti-freeze thermostat.


  • Adopt R410A refreigerant, used to improve coefficient of performance(COP) and R410A is ozone-friendly.


  • Refrigeration loop controlled by high and low pressure switches to ensure stable operation.


  • Compressor and pump overload protection.


  • Adopts precise Italian temperature controller with and accuracy of ±1℃.


  • All adopt quality compressors from major supplier.


  • Middle Pressure Pump is optional.


  • SIC-W-R2 adopts tube-in-shell condenser design. Without any need of cooling water for excellent heat transfer and rapid cooling.



  Accessory option


  • Medium and high pressure pumps are optional to meet any pressure requirements.


  • Water tank level sensor is available to detect whether the water level is normal.


  • Hot-air bypass valve can be opted for with an accuracy of ±1℃.


  • Solenoid valves are optional to immediately cut the refrigerant after machine halts to prevent compressor freezing.


  • Refrigerant indicator can be opted to detect the refrigerant and ensure its quality and water ratio.


  • Flow switches are optional to detect the chilled water.


  • 1/2" water flow regulator SFR-400 is optional. (Only suitable for SIC-9W-R2 & SIC-14W-R2)
