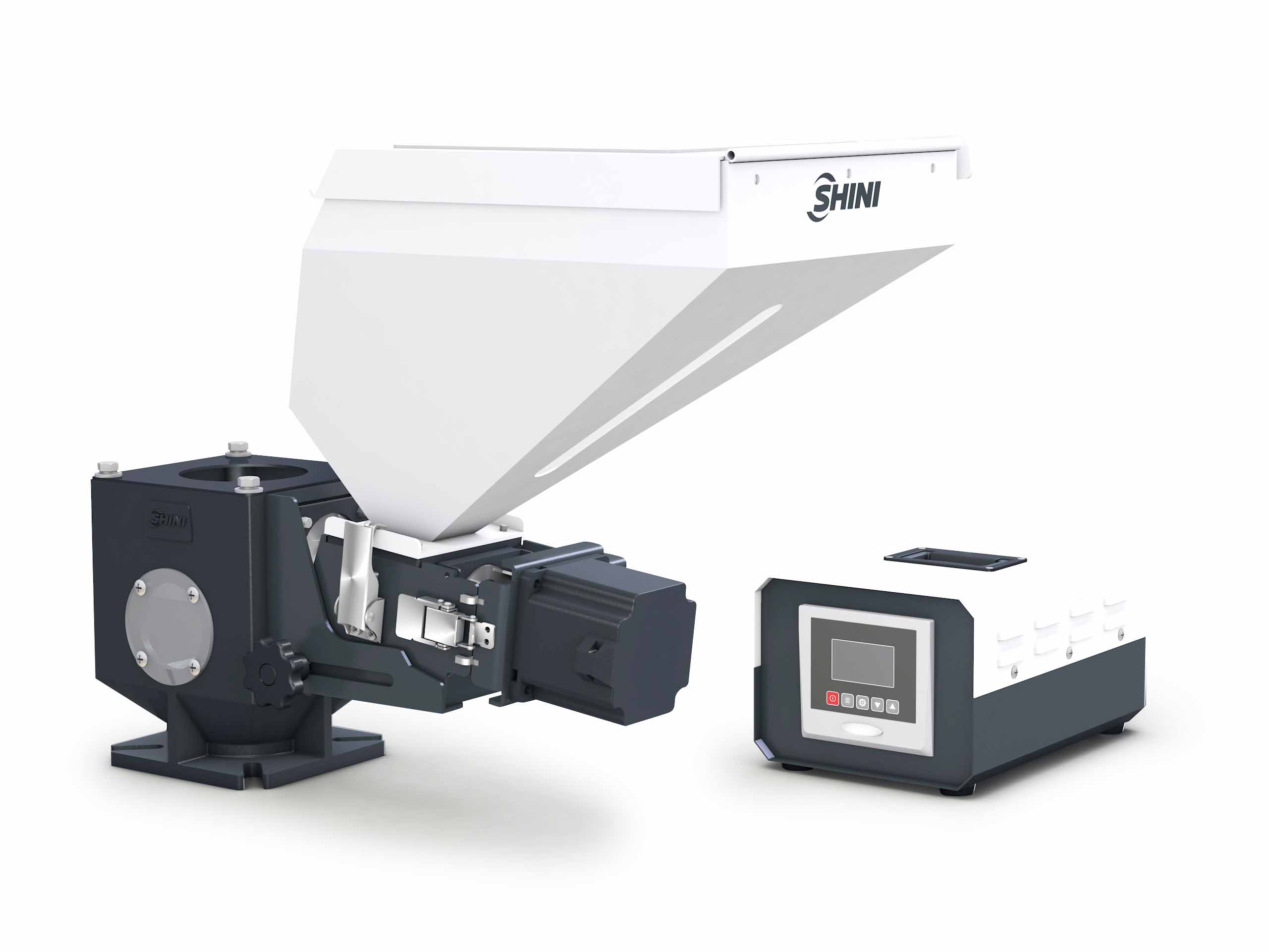

Budget Series Shini Volumetric Doser SCM-EB

DownloadDownload InquiryInquiry

    • Feeding Screw

      The feeding screw is driven by the feeding motor to rotate and take the masterbatch to the base under the rotation of the screw;

    • Feeding Motor

      The feeding motor is controlled by the controller and output corresponding rotation speed according to the set proportion;
    SCM-EB  series volumetric dosers are suitable for auto-proportional mixing of virgin materials, regrinds, master batch or additives. A gear motor with gear ratio of 38:1 is coupled to a dosing screw of 12, 16,20 or 30mmin diameter to give a total of four models with output ranging from 0.1~110kg/hr. Double-color doser is available for collocating with any two of single color dosers if required. Five components automatic mixing can be realized if customers adopt four-color dosers.
    SCM-EB supports the extruder mode. When working with the extruder, SCM-EB only requires simple circuit adjustment that can achieve the linkage between the masterbatch metering and the rotating speed of extruder screw, so as to maintain stable additives proportion. Due to small additives proportion and dosage, SCM-EB can work with the Venturi Loader VL to realize auto feeding of the masterbatch.

    Features

    • Dosing screws are chrome plated for durability.
    • Use brushless DC motor and free from maintenance.
    • Unit is comprised of standard modules for easy of cleaning, disassembly and interchangeability
    • It also can meet the requirement of external signal input
    • The current mode can be recorded without interrupted by power failure
    • Compulsory material cleaning makes it easier to replace masterbatch
    • Applicable to injection and extrusion molding
    • Rotating speed can be automatically adjusted according to extruder processing speed , which maintains the fixed proportion of masterbatch
    • 50 recipes are available for permanent recording of material discharging time and finished products weight (for extruder, it is max. throughput per minute).
    • Both masterbatch blockage and overload can be detected, and then machine will halt and sound an alarm.
    • Micro-metering mode is available, and mode cycle can be set to add additives periodically
    • Equipped with the RS485 communication port
