Compressed Air Dryers - SCAD

DownloadDownload InquiryInquiry

    • Heat Preservation Tank

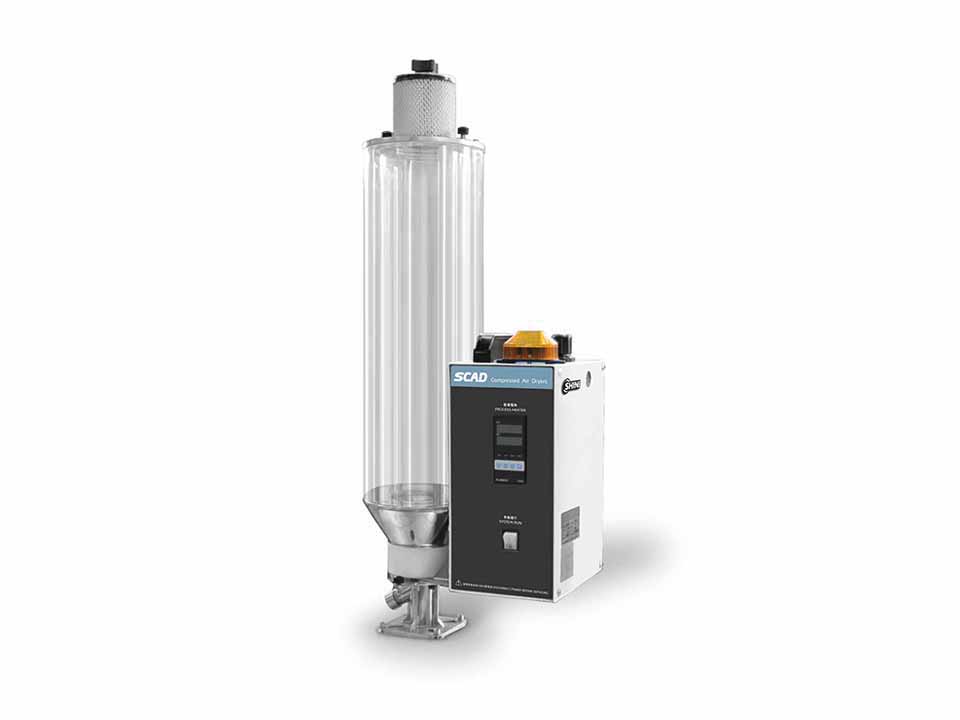

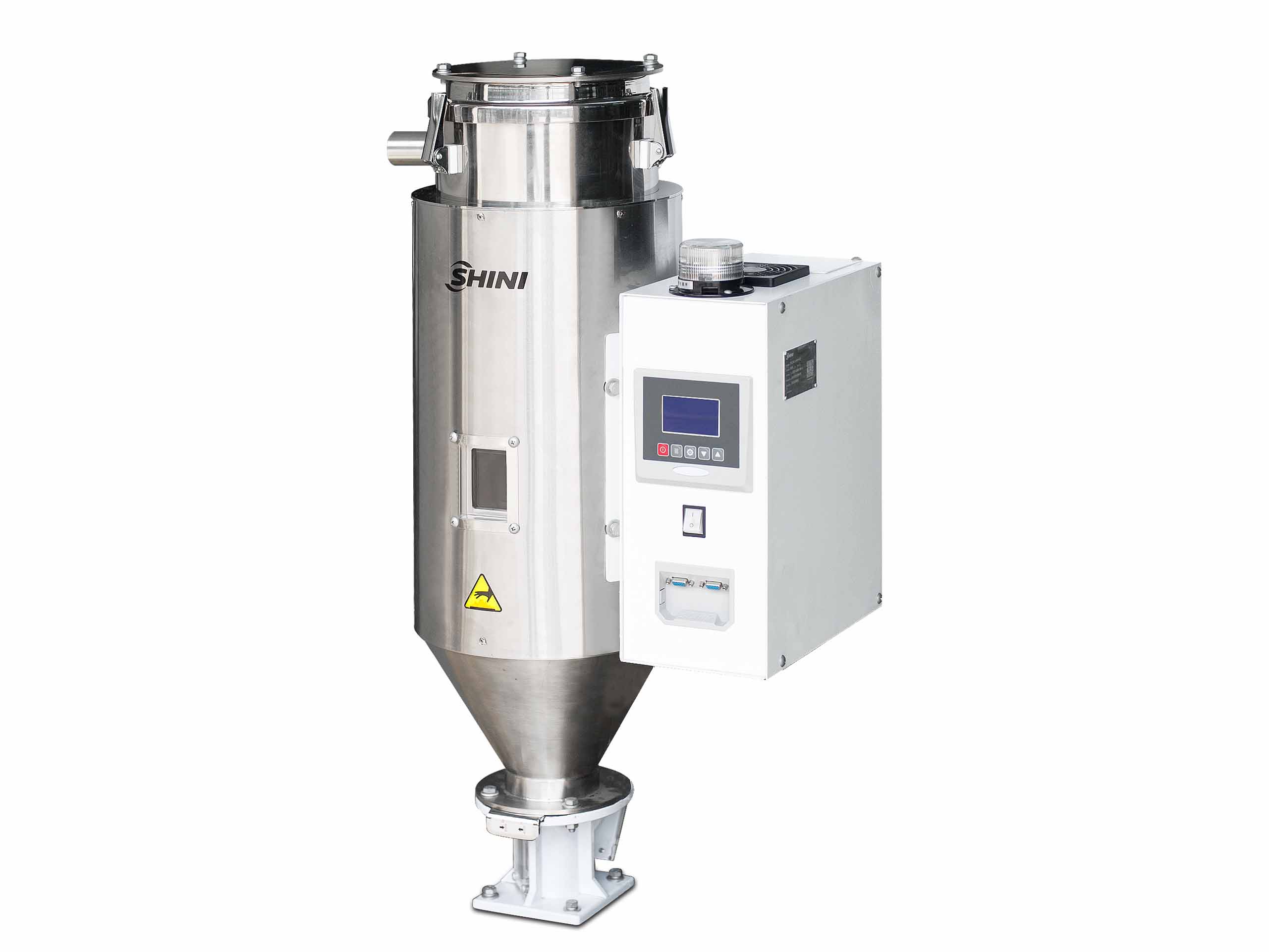

      SCAD-1~6U adopts high temperature resistant glass pipe of double layer while SCAD-12~40U is made of stainless steel.

    • Control Box

      This machine adopts compact design, which means electrical components, heating pipe of small power and protection devices are set together in the control box.
    SCAD integrates plastic drying and conveying into one unit, which is especially applicable to vertical injection moulding machine and stand injection moulding machine when limited by height of the workshop. The SCAD adopts positive compressed air to load material so it has low noise level and low energy consumption. Euro design features classy appearance and easy for maintenance. The hot and dry air is formed by sending outfitted compressed air into pipe heaters. Unique up-blowing air pipe design makes hot air evenly spread out to achieve best drying effect.

    Features

    • Adjustable material level sensor is a standard component which can adjust material handling capacity according to customer requirements.
    • Little space occupation and easy for transportation and installation, also allow freely shift mount on different injection moulding feed ports.
    • Stainless steel hopper ensures no material contamination.
    • No need of blower and the driven power is pressured air without any environment pollution.
    • Adopts positive compressed air to load with little noise and low energy consumption.
    • Equipped with overheat protector to prevent over high drying temperature.
    • Equipped with air outlet filter to filtrate the exhaust dry air . Equipped with alarm indicator.
    • Hotair recydling equipment is adopted for energy-saving.
    • One week timer as an option that offers customer auto start / stop function.
    • Upon request, it can be built to comply with worldwide electrical safety standards (For example : CE, UL, CSA, JIS etc.).
