Gravimetric Blenders - SGB

DownloadDownload InquiryInquiry

    • Quick Detachable Structure


    • Touch Panel


    • Metering Screw

    • Quick detachable Air Connection


    • mixing motor


    • Vertical Metering Valve


    The SGB Gravimetric Blender is equipped with a PLC controller, making it ideal for applications that require precise mixing of multiple materials based on weight proportions. It is suitable for processes like injection, extrusion, or hollow moulding. The blender can be installed in two ways: as a floor stand or a direct mount.

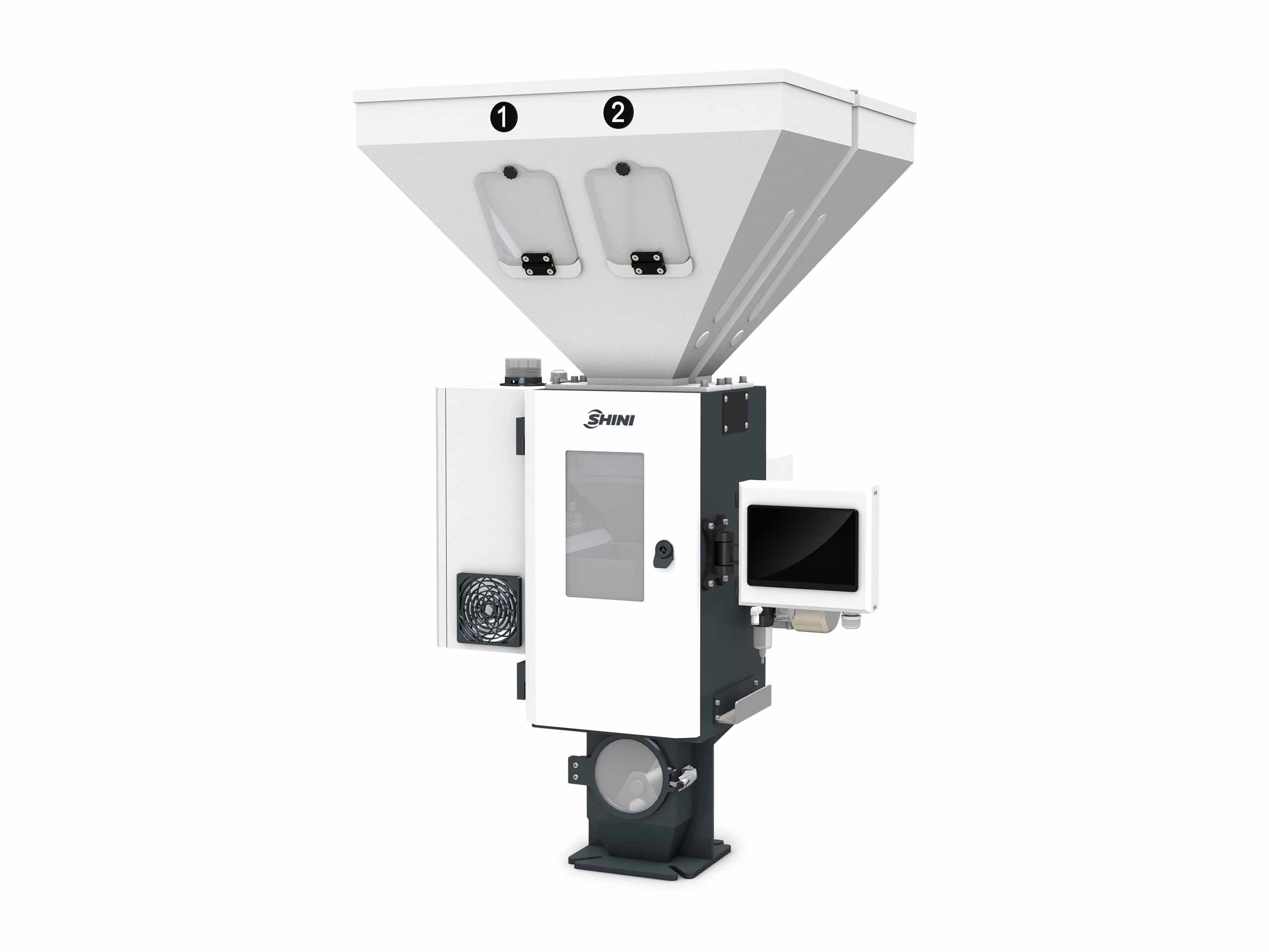

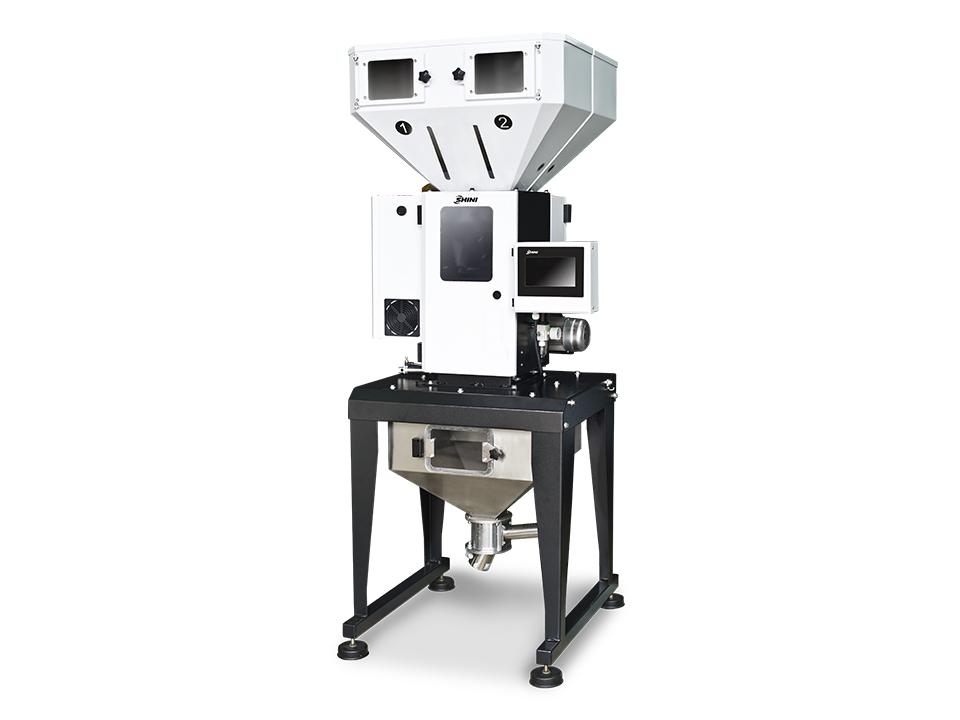

    The floor stand version is designed for a flat ground foundation and is typically used in conjunction with a material storage tank or suction box. In contrast, the direct-mount version can be installed directly at the injection moulding machine's feeding port.

    Features

    • An optional movable hopper with a quick-release air connector is available for the SGB-1/3 series, making it easier to change masterbatches and perform cleaning and maintenance.
    • The quick-detachable mixing tank and blade make it easy to disassemble and clean.
    • Use a 7-inch colour touch panel to enhance user operation efficiency and overall experience.
    • Support auto suction control function, and the vacuum generator SVG and the central hopper receiver SHR-U-ST are optional for auto material addition;
    • Support production data record viewing and alarm record storing;
    • Production data can be exported via a USB interface with a single click for convenient analysis.
    • Support sandwich metering mode to solve the problem of differences in the bulk density of masterbatch materials.
    • The unit supports regrind auto-compensation, which automatically adjusts the proportions of materials and masterbatches.
    • Preset output is available, and the unit can stop automatically when it reaches the preset weight.
    • Support auto update of PLC HMI programs via USB interface to achieve software upgrade;
    • The auto-speed calibration function is performed after each material weighing, using the dosing rate to ensure the best proportioning accuracy.
    • The recipe storage function can store up to 1000 recipes.
    • The Ethernet communication function enables centralised connection and monitoring with the main process machine.
    • Support multiple languages including Chinese, English, Spanish, French, Vietnamese, Japanese, and Polish.
