With LCD control panel, it’s convenient for operators to input temperature parameters. Besides, PID temperature control system enables it to ensure precise temperature control.
Safety Valve
It can prevent over
pressure which caused by pipe blockage through releasing pressure when the
inside pressure of the pipe reaches to 10kgf/cm2 to prevent accidents.
Heating Tank
Make water
temperature reach to the required temperature by heating water and direct
cooling way.
Pump
Use pump of mass flow to offer power source for water to run between the mold and the machine itself.

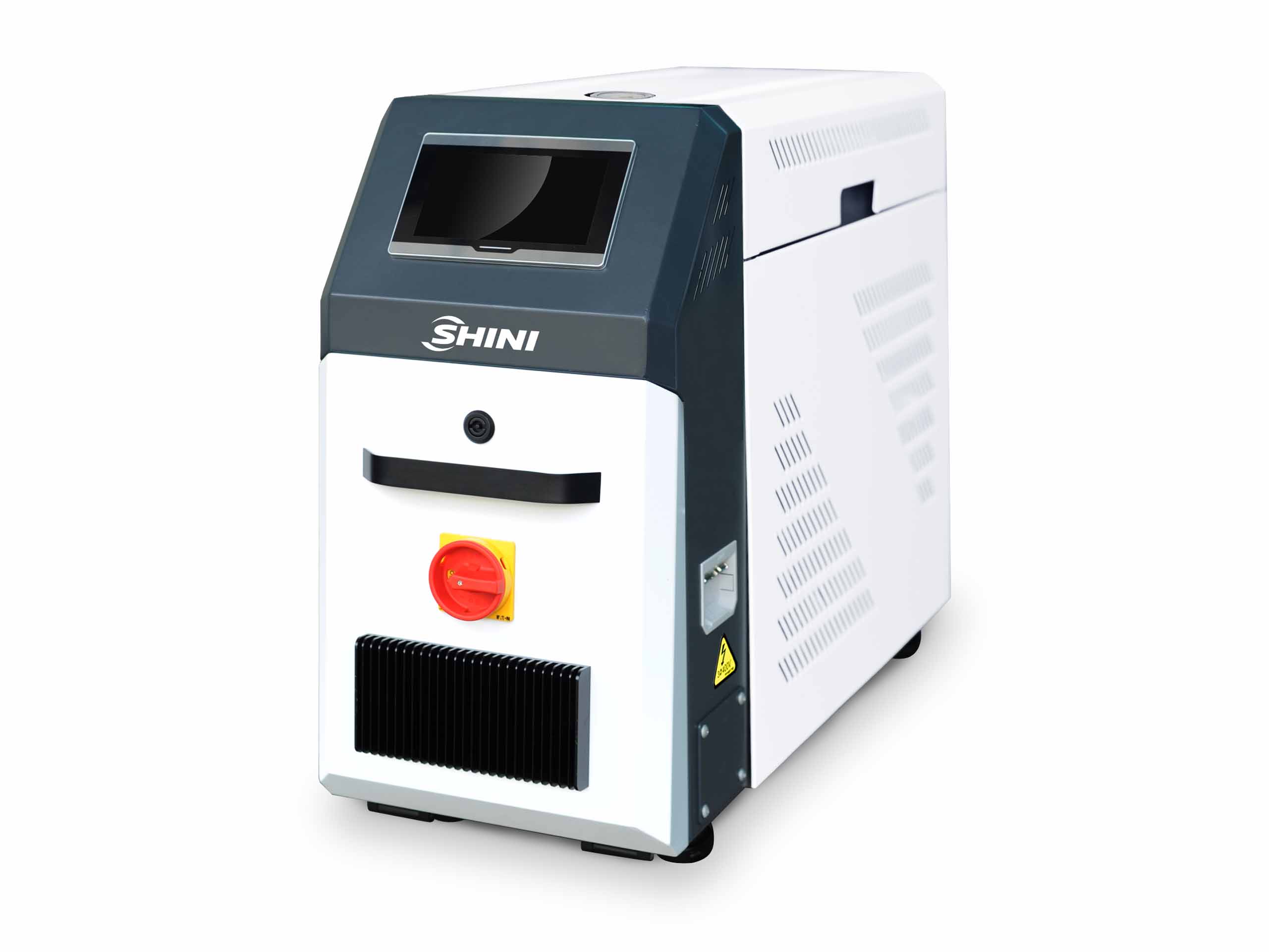

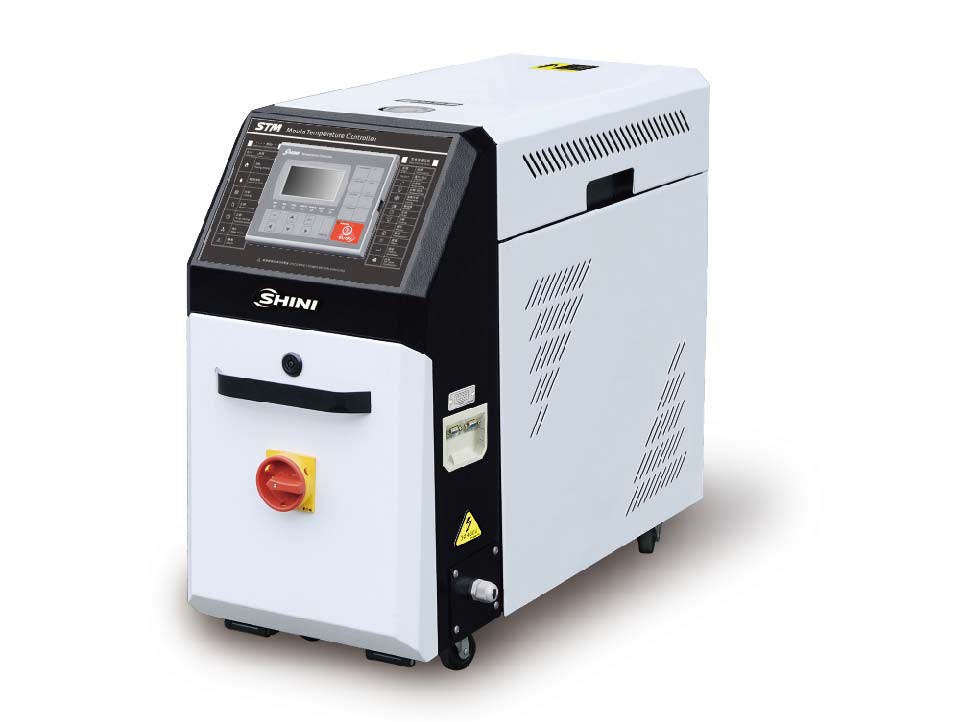

STM-WF series "Large Flow" water heaters are used to heat up the mould and maintain temperature, although they can be used in other similar applications. High temperature water from the mould is returned to the cooling tank and cooled by direct cooling. It is then pressurized by the high-pressure pump, sent to the heating tank and finally to the mould with a constant temperature. The HANYOUNG temperature controller can maintain an accuracy of ±0.5℃.
Features
Large water flow design with a maximum working temperature of 120℃.
In build weekly timer with ℃oF unit conversion.
P.I.D. multi-stage temperature control system can maintain a mould temperature with an accuracy of ±0.5℃.
In build multiple safety with display and alarm buzzer, such as reverse phase, pump overload, overheat, and low water pressure.
Direct cooling with excellent heating exchange. Auto refilling device cools down the temperature to set value directly.
