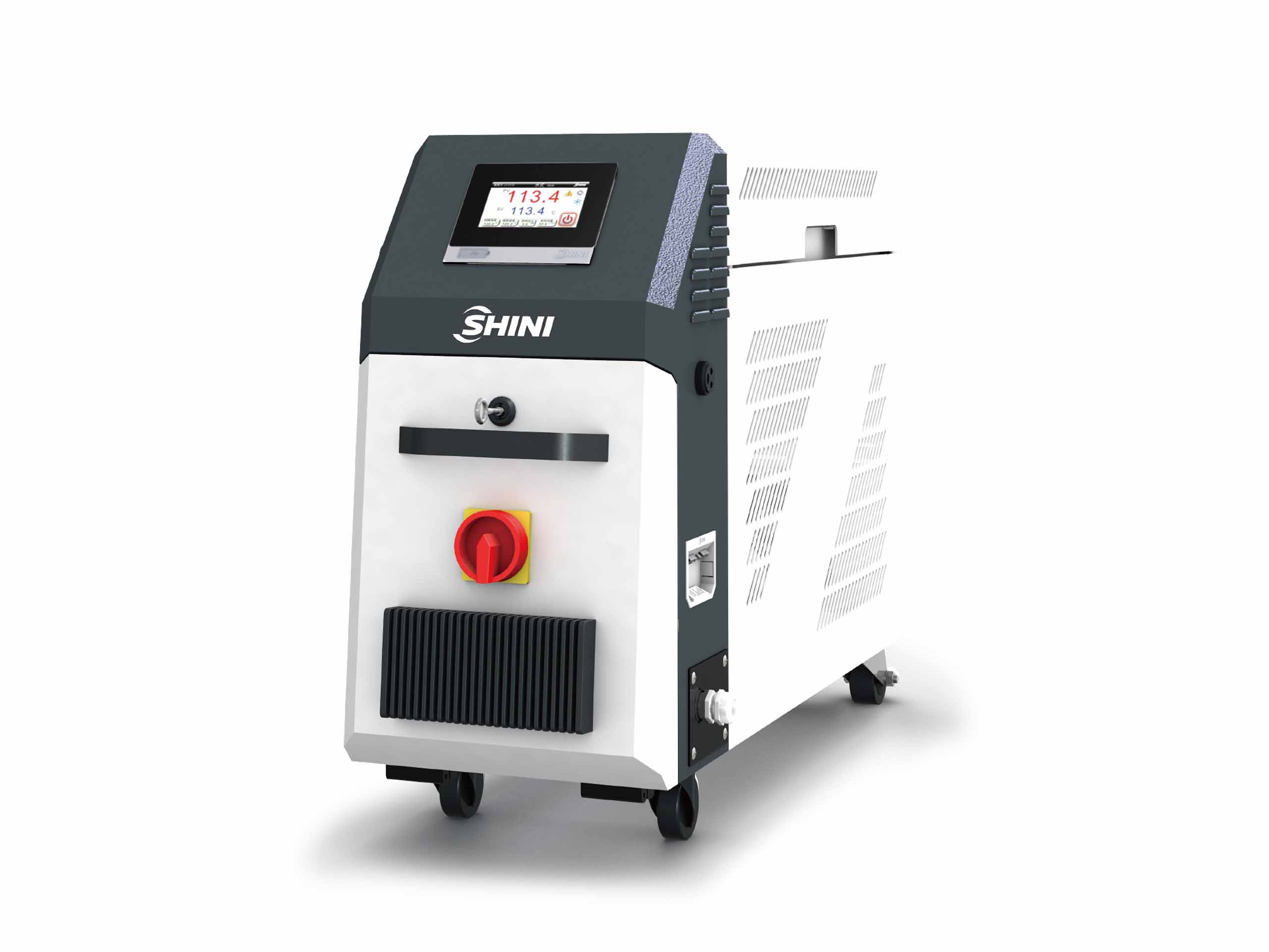

STM-DPW series high-temperature water mould temperature controllers are mainly used for mould heating and precise temperature control, and are also suitable for other applications with similar requirements.
Compared with the standard water type model STM-W, this series offers a higher maximum operating temperature of up to 180°C, meeting the demands of a wider range of moulding processes.In addition, a variety of optional functions and accessories are available to satisfy different production requirements.
Features
- Maximum operating temperature up to 180°C.
- 4.3” Touch screen controller with easy-to-use HMI
- and clean display.
- Adopt the SSR solid-state relay controller.
- Non-contact heaters are used, preventing scale buildup caused by water quality.
- Direct cooling system enables rapid heat exchange.
- Full digital multi-stage PID temperature control system maintains stable mould temperature under all operating conditions, with control accuracy of ±0.5°C.
- Built-in weekly timer, with °C/°F unit conversion.
- Multiple safety protections, including reverse phase protection, pump overload protection, over-temperature protection, and low water level protection.The controller automatically detects faults and indicates abnormal conditions via alarm indicators.
- Built-in seal-less magnetic pump, reducing the risk of leakage.
- RS485 communication interface enables centralized monitoring and communication with the host machine.
- The flow rate reference display is provided, precision flow sensor is an option.
- Equipped with a water level probe and high-pressure plunger pump to accurately detect water level and automatically replenish water.When the system water level is too low, water is supplied to the high-pressure system to prevent dry heating of the heater.
